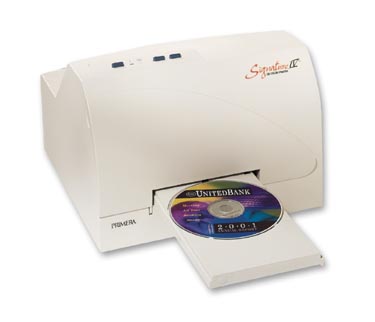

Signature IV Color CD Printer

Signature IV is a fourth-generation ink-jet CD color printer from Primera Technology, Inc. It combines fast print speed offered with one of the highest print resolution available in the world today: 1200 x 1200 dpi for a stunning 1.44 million pixels per square inch. Signature IV delivers true photo-quality images along with incredibly crisp and clear test and graphics. You can create colorful, customized CD-R designs right on your desktop at a price that is very affordable.

Signature IV is fast too. A typical full-color disc with 100% coverage prints in just 27 seconds. The printerˇ¦s tray in/out speed has also been increased by 67% compared to the previous model. So, youˇ¦ll be able to produce more discs per hour than ever before!

Signature IV utilizes a special ink formulation combined with our exclusive built-in PrimaColor color matching software to deliver bright, bold and true photo-realistic colors onto printable-surface optical media. Images are very durable and on many brands of CD-R media dry immediately.The printer comes equipped with CD label software, making it easy for you to format your designs. You can also use any of your favority Windows programs to create customized CD-R designs.

A new built-in early-warning system notifies the user as ink levels get close to empty. Ink capacity is over twice that of other similar cartridges, offering longer print runs between cartridge changes and a lower cost per printed disc.

Signature IV CD Printer
Print Speed
Depends upon percentage of coverage and print mode selected:
  • About 132 seconds for 100% full-color coverage, Photo 1200.
  • About 106 seconds for 100%, full-color coverage, Best 600
  • About 67 seconds for 100% full-color coverage, Normal 600 (default).
  • About 27 seconds for 100% full-color, Fast 600.
  • About 10 seconds for 15% black monochrome coverage, Fast 600.
Technical Specifications
Print Method Ink-Jet
Print Resolution 1200 x 1200 dpi, 600 x 600 dpi, or 600 x 300 driver selectable
Colors 16.7 million or black monochrome
Media Types Printable-surface 120mm CD-R or DVD-R; also supports 58mm x 86mm printable-surface business card CDs or 80mm printable-surface mini-discs with optional adapter kits (each sold separately)
Printer Driver Supplied with drivers for Windows 95/98/Me and Windows NT/2000
Data Interfaces Centronics-type parallel; also works with most USB to Parallel cables for Windows-based PCs
Recommendation System Requirements Pentium-class computer or greater, 32MB RAM, 100MB free hard drive space, Macintosh PowerPC or greater
Control Interface TTL level signals for busy printing, tray open/close, etc; available on rear-panel 6-pin DIN connector

Label Editing Software

SureThing First Edition Software for Windows included
Maximum Print Width 4.72" (120mm)
Electrical Ratings 30 VDC 0.5A
Power Supply Three voltages: 100 VAC, 120-127 VAC, 220-240 VAC
Certifications: UL, UL-C, CE, FCC Class B
Dimensions H X W X D = 7.5" X 10.5" X 10.5" (190mmH x 266mmW x 266mmD)
Weights 8.5 lbs (3.9 kg)
Warranty

One Year
