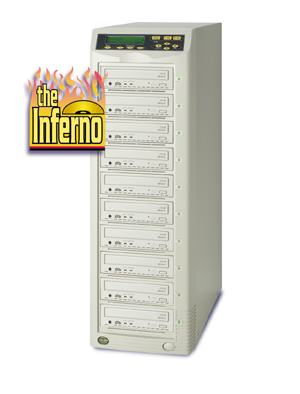

Inferno
CD-R/DVD-R Duplication Station (SCSI Model)
The Inferno is a high performance CD
Recordable /DVD tower duplication system, featuring precision technology
from Hoei Sangyo, Inc. It is expandable with Master - Slave configurations,
and provide the user with easy one touch operation. Up to 400 discs
can be created simultaneously via the VMI card, which also allows
for a direct upgrade path to DVD.
The Inferno will interface to PC or
Mac, providing complete control of the mastering and duplication
process, and can be adjusted to record at 2X, 4X, or 8X speeds for
a variety of applications.
|
 |
|
Features
|
-
VMI
Card Technology (Versatile Media Interface) - allows
easy expansion by simply install the VMI card into any
of the three slots of the backplane of a master unit.
Each VMI card supports up to ten 8X recorders, and two
DVD recorders.
-
Switchable
Recording Speed - the record speed can be altered
from 1X, 2X, 4X and Max on the front panel keyboard interface,
according to disc type and application.
- Easy
Operation - Automatic CD format detection allows duplication
by pressing one button.
- Direct
SCSI - The Direct SCSI channel allows the Inferno to
operate in "Target Mode", connected to a PC or
Mac. Users can write data to all recorders simultaneously
from an image file on the hard drive without burining the
first CD or DVD master.
- SP/DIF
Interface - Users may install the "Fusion DA"
interface card in the backplane of the Inferno, which connects
to any digital audio device. Audio data from DAT tape or
other digital source can be downloaded to the internal hard
drive, and converted to a Red Book audio image.
- Track
Extraction - Customize audio CD's by downloading individual
audio tracks from a variety of selections. Create both Track
at Once and Disc at Once CD's with the optional hard drive.
- Drive
Cooling Air Slots - The aerodynamic design allows for
constant air flow, controlling heat buildup inside the duplicator.
MTBF ratings and the overall life of the unit are dramatically
increased.
- Flex
HD - With the optional hard drive, Flex HD allows the
user to begin the copy job at staggered start intervals,
providing the operator with minimal downtime.
|
|
|
Inferno 8X
Recorder Benefits:
Inferno 8X recorders
are designed specifically for CD-R duplication environments. The
ruggedized tray mechanism combined with a high performance grade
laser pick up provides Inferno users with the extended life of the
system and assured data integrity. Other features include:
- Running OPC
- Support for
ISRC and subindex recording
- Frame accurate
audio verification
- Media condition
check
|
| |
|
Technical
Specifications
|
| Master |
Slave |
| (10) 8X recorders |
(10) 8X recorders |
| (1)
40X external reader |
(1)
VMI interface card (separate) |
| (3)
VMI card slots |
Switchable
115/230 power supply |
| Switchable
115/230 power supply |
H
X W X D: 20" X 8" X 18" |
| H
X W X D: 20" X 8" X 18" |
Weight:
50 lbs |
| Weight:
55 lbs |
|
|
|
For
further information call 23369662 or e-mail to sales@ischoolmedia.com.
