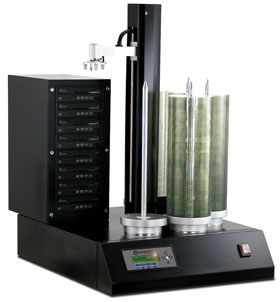

HCL Autoloader

For unattended disc duplication runs, let the Microboards HCL Autoloader handle the work load. With a state-of-the-art robotic arm and eight drives, the autoloader will burn up to 104 CDs or 72 DVDs per hour.

• Complete standalone operation: No PC required
• Maximum 1000 disc capacity
• Multi-Master Recognition Technology (MMRT): Loads multiple masters at once to run multiple duplication jobs in succession.
• Sticky media separator option: Higher probability to separate sticky media.
• Multi-Language capability for English & Spanish
• Auto-Counter Technology: Displays the total number of discs successfully copied compared to desired output for each project.

Microboards HCL Autoloader

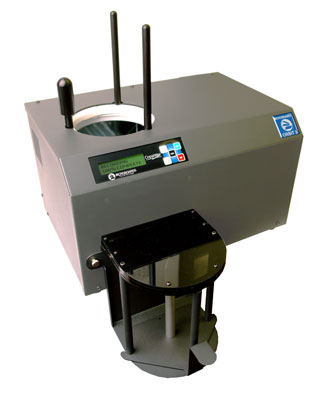

All-New Orbit 3: Twice the Power!

The latest in a line of outstanding disc duplication products from Microboards Technology is the third generation of the award-winning Orbit automated CD/DVD copier.

The Orbit 3 allows unattended duplication of up to 100 discs at a time. Featuring Microboards' patented disc singulation technology, 100 CDs or DVDs can be placed into the Orbit 3 at a time. The dual-drive system writes two discs simultaneously at top speeds of 48X CD and 18X DVD.

The Orbit 3 stores successful discs in a spindled output bin while automatically ejecting rejected discs. The Orbit 3 also comes complete with HDD for multiple image archiving.

Supported Formats
Recording Format - CD CD-ROM Mode 1, CD-ROM XA Mode 2 (form 1 & 2), Photo CD, CD-DA (Audio CD), CD-Extra, CD-R, CD-RW DVD DVD-ROM, DVD+/-R/RW/DL, DVD-VIDEO
Recording Capacity - CD 700MB, DVD 4.7 GB for General, DVD 8.3 GB for Dual Layer
Applicable Media - CD CD-R, CD-RW DVD DVD+/-R, DVD+/-RW, DVD+/-R Dual Layer

Product Specifications
DVD Recorder Drives: DVD+/-R/RW/DL, CD-R/RW Recorder
Power Source: 115V/230V 50-60Hz auto-switching power supply
Weight: 27.5 pounds
Dimensions: 15.25" W x 10" D x 9.5" H (15.5" with input rods installed)
Power Supply: 400W

Environment:
Temperature: 40 degree F - 105 degree F (5 degree C - 40 degree C)
Humidity: 20% - 80%
